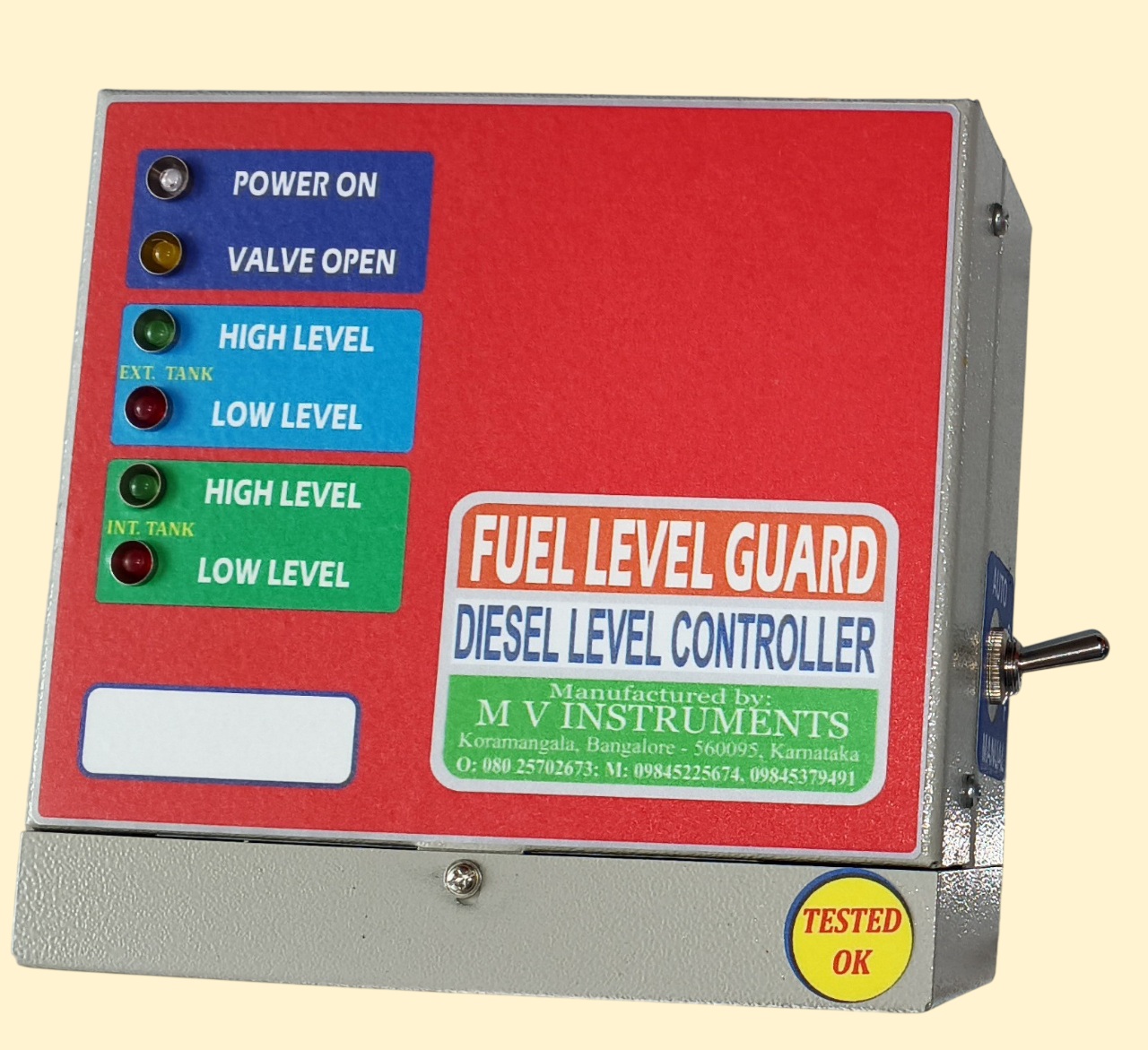

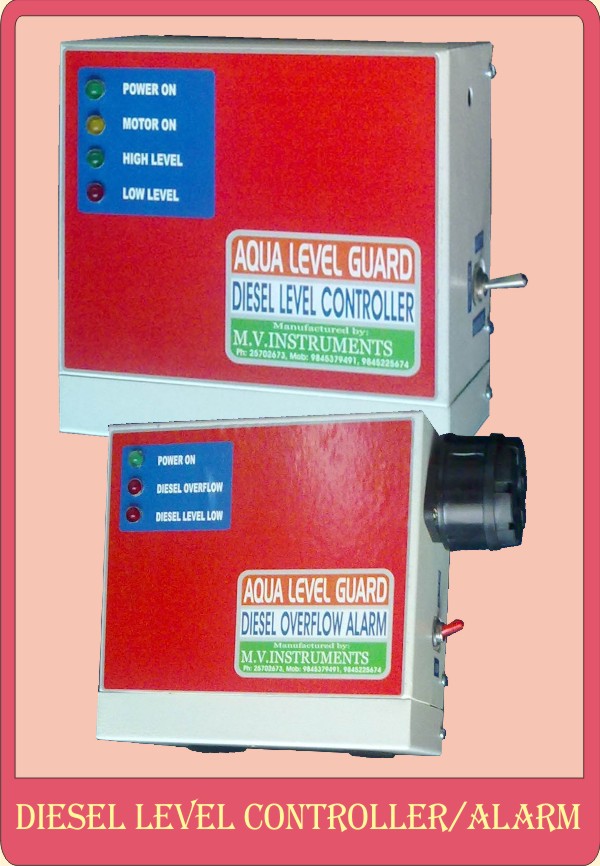

The Fuel/HSD Level Controller:
This model is a Diesel Level Controller which is a completely Automatic System with additional Overflow/Low level Alarm indication system. This system works in conjunction with Stainless Steel Float Sensors which is also manufacatured by our company. This model comes with One Year Guarantee.
The Technical Specifications:
| Description | Single Phase | Three Phase | |
| Operating Voltage. | 230V 50 Hz AC. | 440V 50 Hz AC. | |
| System Operating Voltage. | 12V DC. | ||
| Sensing Method. | 2 Potential Free Contacts from SS Float Sensor. | ||
| Sensing Current. | 20 micro Amp. | ||
| Power Contactor Rating. | 30A Load Current. | 10A for Coil Control. | |
| Operating Switch Rating. | 20A. | 6A. | |
| Power Consumption | 0.05 Unit Per day. | ||
| Surge Voltage delay. | 15 Sec. | ||
| Visual Indications. |
|
||
| Enclosure. | Power Coated MS Sheet Metal. | ||
| Dimensions ( L X B X H ) | 8 inch X 7 inch X 3.5 inch. | GO BACK | |
