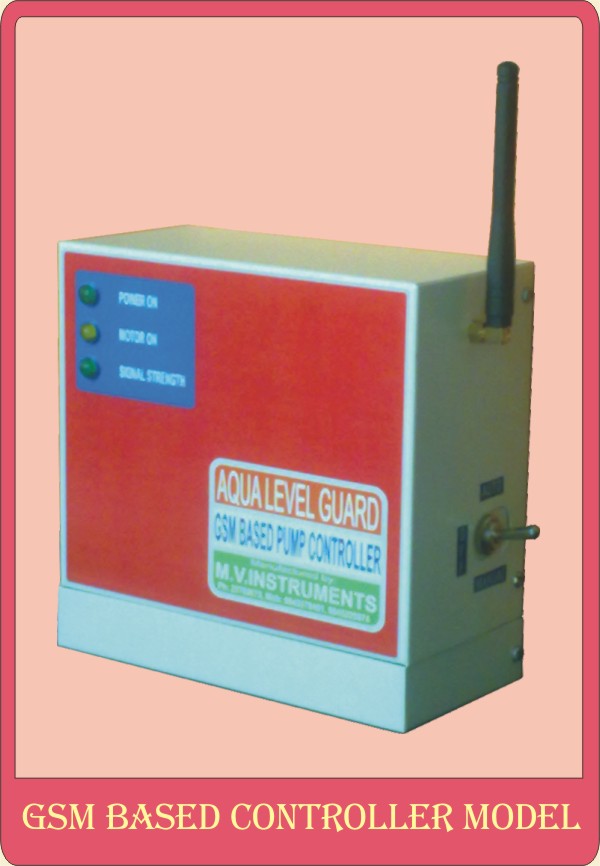

The GSM SIM Based Remote Starter Control System:
This model is a Remote Pumpset Starter Control system which can be controlled with a help of any regular Cell Phone. When the starter can be controlled from mobile phone, naturally it can be from anywhere in the city, or anywhere in the world for that matter.
The Technical Specifications:
| Description | Single Phase | Three Phase | |
| Operating Voltage. | 230V 50 Hz AC. | 440V 50 Hz AC. | |
| System Operating Voltage. | 5V DC. | ||
| Power Contactor Rating. | 30A Load Current. | 10A for Coil Control. | |
| Operating Switch Rating. | 20 Amp. | 6 Amp. | |
| Power Consumption | 0.05 Unit Per day. | ||
| Visual Indications. |
|
||
| Enclosure. | Power Coated MS Sheet Metal. | ||
| Dimensions ( L X B X H ) | 8 inch X 7 inch X 3.5 inch. | GO BACK | |
